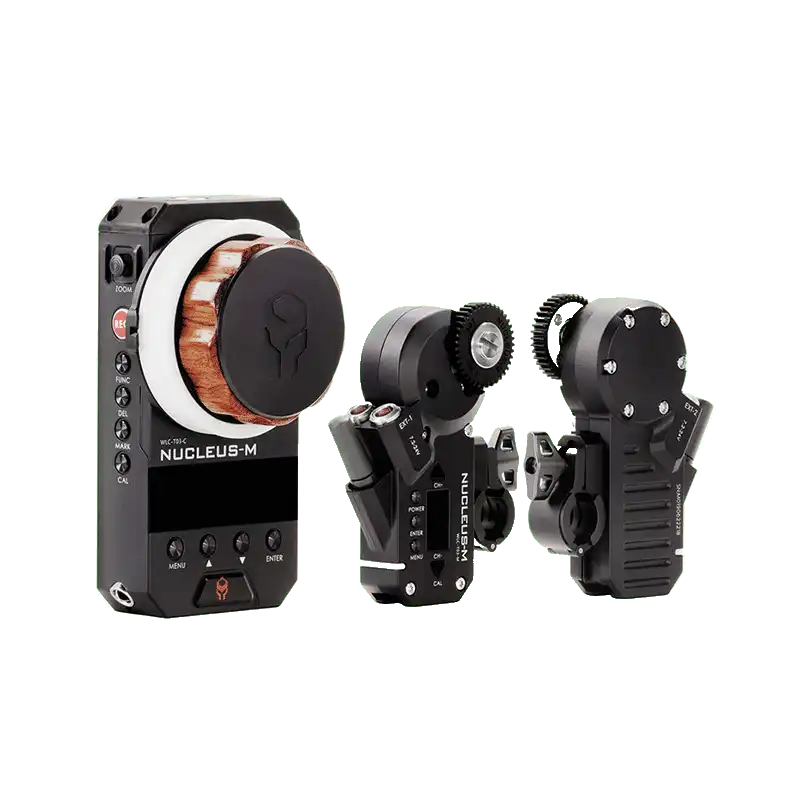

Tilta Nucleus M Wireless Follow Focus System offers reliable, precise control with a 1000-foot transmission range. This complete package includes two lens drive motors with built-in wireless receivers, a FIZ hand controller, and two handgrips—one for controlling focus, and the other for iris and zoom adjustments. Each motor is equipped with cine-standard 0.8 MOD drive gears and two 7-pin connectors, allowing for easy swapping or interchangeability. The motors are powered by daisy-chaining through the 7-pin cables, and each motor includes a 19mm rod clamp with a 19mm-to-15mm reducing bushing, ensuring compatibility with various rod sizes. Tilta Nucleus M Wireless Follow Focus FIZ hand controller enables precise control over focus, iris, and zoom, with the added convenience of a neck strap. The handgrips are designed with adapters to mount onto ARRI-compatible rosettes or 25/30mm rods, making them perfect for use with gimbals or other setups. The system comes packed in a durable, waterproof hard case, protecting your gear during transport and storage.

The system operates in three adjustable ranges—low, medium, and high—and supports up to 15 selectable channels. The controllers pair with each motor via unique motor IDs. The FIZ hand unit can control all three channels (focus, iris, zoom) and can override the handgrips when necessary. The motors can be calibrated for lenses with or without hard stops, including photo lenses with follow-focus gears.

The motors are powered via D-Tap connectors and daisy-chained with 7-pin cables. The FIZ hand controller and handgrips use two 18650 3000mAh Li-ion batteries. Battery life is up to 10 hours for the hand controller and up to 48 hours per handgrip when idle. More
